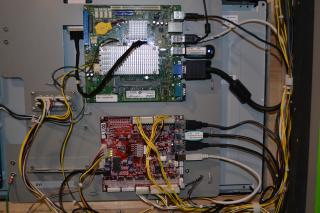

After removing the rear panel from the cabinet, you will see the electronic boards attached to the rear of the inside monitor
The motherboard is located on the top
Attached to the motherboard are the inside camera, I/O board, and application drive.
The inside monitor is wired directly to the motherboard.
The rear monitor is attached to the motherboard by a VGA cable

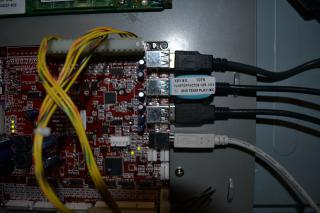

The I/O board is directly below the motherboard
Inserted in the I/O board is the security dongle.
The rear camera and both printers are hooked into the I/O board
The currency acceptors and inside buttons are also wired into the I/O board.
At the top of the cabinet is the power supply
